Tracing the Cause of a Volkswagen Golf Transmission Fault and P1736 Fault Code
You rely on your automatic gearbox to change gear smoothly every time you drive. So when that stops happening, it raises immediate questions.

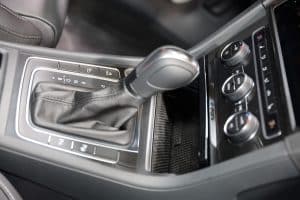

That’s what Mr P was facing. His 2020 Volkswagen Golf had developed unpredictable gear changes, with certain gears failing to engage during normal driving. A transmission fault warning had also appeared on the dashboard, and there was no obvious reason for any of it.
The symptoms had arrived without any warning. There had been no gradual change and nothing to suggest a problem was developing. Mr P didn’t know whether the car was still safe to use, how quickly the fault might progress, or what was actually behind it.
Mr P reached out to JDK Automotive, Camberley, to get the issue properly assessed. The behaviour was consistent with a Volkswagen Golf transmission fault that called for thorough investigation and an accurate repair.
He needed a team with strong technical ability and a structured diagnostic process to identify the cause and resolve it correctly.
With that, Mr P booked the Golf in with JDK Automotive for a full technical evaluation.
Our Step-by-Step Assessment of the Volkswagen Golf
At JDK Automotive, Camberley, the first stage was a detailed conversation with Mr P about the issues he had been noticing. Our technicians asked when the unpredictable shifting had first started, how frequently it was happening, and whether the behaviour changed under different driving conditions such as speed, temperature, or journey length.
This level of detail early on sharpens the direction of the technical evaluation that follows. It helps our technicians approach the testing with a clear focus, rather than working from assumptions.
A road test was then carried out to confirm the reported symptoms in real time. Manufacturer-level diagnostic equipment was connected throughout the drive, recording serial data from the transmission control module as the vehicle was being driven. This allowed our technicians to observe exactly how the system was responding at the point the fault occurred.
During the same process, a full system scan was completed. This flagged a stored fault code directly connected to the Volkswagen Golf transmission fault:
- P1736 00 — Position sensor for clutch 2, electrical malfunction. Active.
This meant the transmission control module had picked up an electrical fault relating to one of the internal sensors that monitors clutch operation. But a transmission warning light diagnosis goes well beyond reading a code. What matters is identifying what the code is actually telling you.
To understand what the Volkswagen P1736 fault code was pointing to, and to make sure the right steps were taken from here, further investigation was essential.
Identifying the Root Cause Through Detailed Inspection
Fault code P1736 had directed attention to an electrical malfunction involving the position sensor for clutch 2. That was the starting point, but our technicians needed to go deeper. Before the right repair for this Volkswagen Golf transmission fault could be determined, it was critical to confirm what had failed and establish the reason behind it. A methodical process was followed, working through each area in turn to reach a sound, evidence-based conclusion.
Step 1: Consulting manufacturer technical data
Our technicians used Volkswagen’s technical information service to understand the design and operation of the transmission in Mr P’s Golf.
The 2020 Golf featured a seven-speed Direct Shift Gearbox (DSG), a dual-clutch transmission used widely across the Golf range. It operates through two independent clutches: clutch 1 covers odd gears (1, 3, 5, 7) and clutch 2 covers even gears (2, 4, 6, and reverse). All gear selection and clutch engagement is managed by a mechatronic unit, an integrated assembly containing the transmission control unit (TCU) and a hydraulic valve body.
An essential point is that clutch position within this transmission is not read by a standalone external sensor. The mechatronic unit houses internal pressure sensors that supply the data needed for clutch control, and the system determines clutch position based on those pressure readings. When fault code P1736 refers to “position sensor for clutch 2,” it is identifying this integrated pressure sensor within the mechatronic unit.
For our technicians, this was a telling detail. It pointed firmly toward a fault inside the mechatronic unit, rather than at a separate component mounted externally.
Step 2: Checking for technical service bulletins
Our technicians checked for any technical service bulletins (TSBs) linked to the specific diagnostic trouble code (DTC) and the symptoms Mr P had reported.
- A bulletin was found that matched the precise fault code and the described behaviour
- It identified this as a recognised fault affecting DQ381 transmissions, traced to an issue with the integrated pressure sensors within the mechatronic unit
- The bulletin set out that as these sensors wear or drift beyond their calibrated range, the TCU starts receiving inaccurate pressure data and miscalculates clutch position, resulting in unpredictable shifting and failed engagement of affected gears
This was consistent with what the Volkswagen P1736 fault code had indicated, but our technicians needed to verify through physical testing before the repair could go ahead.
Step 3: Serial data analysis at rest
With the vehicle stationary, the engine off, and the ignition on, our technicians checked the pressure readings for both clutches using manufacturer-level diagnostic equipment.
- Both readings should sit as close to 0.00 bar as possible under these conditions in a correctly functioning system
- Clutch 2 produced a reading that sat noticeably outside the expected value, pointing to a pressure sensor that had drifted beyond its intended operating range
- Clutch 1 produced a reading within the normal range, confirming the fault was restricted to the clutch 2 side of the system
The data aligned with the Volkswagen P1736 fault code and the symptoms Mr P had been experiencing. The even-numbered gears were the ones being affected, which was entirely consistent with a clutch 2 fault.
Step 4: Visual inspection
Our technicians inspected the mechatronic unit externally, along with the wiring harness and connectors, checking for damage, corrosion, or loose connections.
- No external faults were identified, which ruled out any cause outside the mechatronic unit
The conclusion

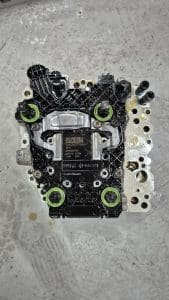

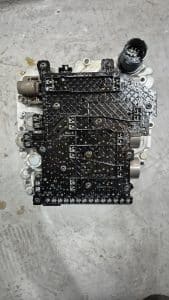

The testing confirmed what the Volkswagen P1736 fault code had been pointing to throughout. The integrated pressure sensor for clutch 2, located on the TCU circuit board within the mechatronic unit, had drifted out of specification. It was no longer providing reliable hydraulic pressure readings for the clutch 2 sub-transmission, which caused the system to miscalculate clutch position and led to incorrect engagement of the even-numbered gears.
This sensor is integrated into the mechatronic assembly and is not available as a standalone replacement part. The full mechatronic unit needed to be replaced.
What Repair Was Needed to Resolve the Fault?
With Mr P’s approval following a full explanation of the findings, the repair work could begin.
Mechatronic unit replacement
- Transmission oil was drained and the mechatronic unit was accessed after removing the transmission oil pan and related components
- The faulty mechatronic unit was carefully disconnected and lifted out of the vehicle
- The replacement unit was installed, with all electrical connections, mounting points, and seals verified to ensure accurate fitment
- Fresh transmission oil was filled to the correct Volkswagen specification in accordance with manufacturer procedure
Calibration and adaptation
- Manufacturer-level diagnostic software was used to run a calibration and adaptation procedure, a critical step after mechatronic replacement. This allows the new TCU to calibrate to the existing tolerances of the transmission and clutch mechanics
- Stored fault codes were cleared from the system
Post-repair road test
- A structured road test followed, providing the conditions needed for the transmission to complete its clutch adaptation under normal driving
- The vehicle was monitored throughout to verify smooth gear changes, confirm no gears were being missed, and check that no new fault codes had been stored
Restored Transmission Performance After the Repair
The Volkswagen gearbox mechatronic repair resolved the Volkswagen Golf transmission fault in full. Gear changes were smooth and consistent, every gear was engaging correctly, and the dashboard was free of warning messages.
Through a structured, evidence-led technical evaluation at JDK Automotive, the root cause was identified accurately and repaired during a single visit. The automatic transmission fault repair was carried out to manufacturer standards, using the same technical data and equipment available at a main dealership, but at a more competitive price.
Mr P left JDK Automotive with his Golf restored to full working order and complete confidence in the repair.
