Audi Q5 AdBlue Repair
When Mr F brought his Audi Q5 to JDK Automotive in Camberley, he was facing a fault that wouldn’t budge.

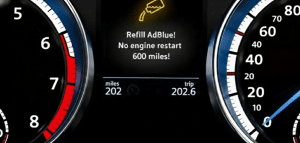

The AdBlue warning light was active, alongside a countdown message stating: “No engine restart after 600 miles.”
But the tank had been refilled. The car had already been to the dealer. A software update had been applied. And the warnings remained.
With no clear explanation and time running down, Mr F turned to our technicians for answers. What followed was a careful, structured investigation, and a result that the dealer hadn’t delivered.
This was a case that required a disciplined approach to vehicle diagnostics, technical knowledge, and detailed testing.
Here’s how we identified the fault and resolved the Audi AdBlue countdown issue.
What We Checked First on This Audi Q5 AdBlue Repair
When Mr F brought his Audi Q5 to JDK Automotive in Camberley, our first step was to speak with him directly. He described how the AdBlue warning light had stayed on, and the dashboard displayed a concerning countdown: “No engine restart after 600 miles.”
The AdBlue tank had been topped up. A software update had already been performed by the main dealer. But the fault still hadn’t been fixed.
We connected our dealer-level diagnostic equipment and scanned the system. The ECU had stored the following fault code:
P20E8 – Reducing Agent Pressure Too Low
This indicated that the SCR (Selective Catalytic Reduction) system wasn’t generating the necessary pressure to inject AdBlue into the exhaust. In the absence of that pressure, the emissions control system can’t do its job, and the car’s control unit will continue to flag the warnings.
The SCR system is designed to reduce emissions by injecting a urea-based fluid into the exhaust – AdBlue. This fluid reacts with harmful nitrogen oxides (NOx) and converts them into harmless gases. However, for the system to work, it must first build pressure. If that doesn’t happen, the injection NOx-reduction process can’t begin.
To confirm the fault, we monitored the SCR system while driving the vehicle. Despite being told to activate, the system recorded no pressure during operation.
With the issue confirmed, our technician set out a step-by-step plan to test whether the fault lay with the pump, the wiring, or the control unit.
How We Traced the Root Cause of the AdBlue Countdown Issue
With no pressure in the system and the fault code P20E8 still active, our next task at JDK Automotive was to carry out a more detailed diagnosis in order to find the root cause of the problem. In normal operation, the SCR system builds pressure by activating the AdBlue pump. That pressure is essential for fluid delivery into the exhaust, and in this case, it wasn’t happening.
We started by confirming that the AdBlue level was correct and that the fluid itself hadn’t been contaminated. Both were within expected limits.
Next, we located the pump and control module and referred to the official Audi wiring diagram. We carried out a full check of the electrical circuit, including voltage supply, ground connection, and continuity. Everything passed.
We then used our dealer-level software to trigger the SCR system manually. The signal was sent, but the pump didn’t respond. There was no activity, no pressure build-up, and no indication of fluid movement.
This ruled out both wiring and control issues. The system was communicating properly, but the pump was failing to act.
The fault was now confirmed: the AdBlue pump had failed and would need to be replaced to restore pressure and clear the warning.
Completing the Audi Q5 AdBlue Pump Repair
Once the failed pump had been identified, we contacted Mr F to explain what was needed. With his go-ahead, we moved forward with the repair.
The AdBlue pump is integrated into the tank at the rear of the vehicle. We removed the necessary undertrays, disconnected the wiring and fluid lines, and extracted the original unit. The area was then cleaned and prepared to ensure a secure fit for the replacement.
We installed a new OEM AdBlue pump, reattached the components, and refilled the tank with fresh fluid to the correct level.
Using our dealer-level diagnostic software, we reset the module, cleared the fault code, and activated the SCR system to confirm the new pump was delivering pressure.
The readings were stable, and the system showed no further faults after reassembly and final testing. The AdBlue system was successfully fixed.
Post-Repair Result: AdBlue Warning Cleared
With the new OEM pump installed and the system reassembled, we used our dealer-level diagnostic tool to run a complete SCR system check. The fault code was cleared, and the delivery lines were primed and repressurised.
The vehicle’s control unit responded as expected. Pressure values returned to normal, the AdBlue warning light was extinguished, and the restart countdown disappeared from the dashboard.
To confirm system integrity, we ran a full monitoring sequence. No new codes appeared, and the original fault did not return. The ECU recognised the replacement component, and the SCR system showed consistent values throughout testing.
This wasn’t a case of guesswork or trial and error; the repair was guided by evidence at every stage.
Mr F’s Audi Q5 was fully restored and functioning as it should. He left our garage with confidence that his Audi Q5 was now operating as it should, with the fault fully resolved at the root cause level.
Audi Q5 Showing a Countdown Warning? Let Us Take a Look
By the time Mr F came to JDK Automotive, his Audi Q5 had already been to the dealer. The AdBlue tank had been refilled. A software update had been carried out. But the warning light was still showing, and the countdown hadn’t cleared.
We didn’t rely on hopeful resets or assumptions. Instead of jumping to conclusions, we followed a step-by-step test plan using dealer-standard diagnostic tools and verified the fault beyond doubt before starting the repair.
That’s what makes our approach so effective. Not guesswork, but structure. And that’s exactly what we apply to every Audi Q5 AdBlue repair.
Here’s what you can expect from our team in Camberley:
- Full diagnostic evaluation with manufacturer-level tools
- Wiring and component testing using official Audi diagrams
- Faults confirmed before any repair is recommended
- OEM parts and a methodical approach throughout
Just ask the drivers who’ve already been to us — we’ve earned a {{average-rating}} star rating from {{review-count}} local customers who trust us to get the job done properly.
To book in with one of our technicians, call JDK Automotive today on 01276 535585.
